The Ultimate Guide to Docking Stations: Everything You Need to Know
Do you need more connection ports on your computer? Or does your PC lack the interface you want to connect with? Computer docking stations are the ultimate solution that allows users to connect their devices through diverse methods. The options are practically unlimited.
Computer docking stations can enhance productivity, improve ergonomics, and ensure convenience for content creators, 3D designers, CAD engineers, and professionals alike. They allow simultaneous connection of a monitor, keyboard, mouse, storage drive, network port, 3.5mm audio jack, SD card, and charging port, decluttering your workspace and simplifying your workflow.
You only need a single data connection port (USB C), and the docking station will expand it into more than 10 various connections. This blog will explain what docking stations are and how to use one in your daily routine to enhance productivity.
What is a Docking Station, and What is its Purpose?
A docking station is an electronic device called a "port replicator." It is meant explicitly for users who need multiple devices connecting to their PCs. A docking station can provide the necessary diversity and number of input/output ports, whether you have a laptop, desktop PC, gaming equipment, or smartphone.
To make a dock operational, you only need to connect a single Type-C or Thunderbolt cable to your computer. The capability of a USB Type-C or Thunderbolt connection to deliver power, transmit data, output display, etc., makes it the ideal interface for docking stations. A powerful dock like the CABLETIME 15-in-1 docking station can support all the connected devices, including an NVMe/NGFF device for storage expansion using a Type-C connection. It can also charge your laptop and connect all your peripherals simultaneously. Continue to the upcoming sections to further understand docking stations' specific use and scope.
Benefits of Using a Docking Station
Docking stations are most beneficial for computers with limited ports. It can provide convenient expansion capabilities while enhancing productivity and optimizing the workspace. Users can pick a dock with specific ports and interface missing on their device. Here are the detailed benefits of a docking station:
1. Expansion Capabilities
The primary purpose of a docking station is to provide diversity and quantity of connection ports. It can expand a single USB-C port into USB-A, USB-C, DP, HDMI, SD, TF, NVMe, LAN, and audio connections. Due to the latest Thunderbolt and USB interfaces, a single USB-C port can deliver power and perform data transfer simultaneously. Power users like video editors, gamers, day traders, etc., can utilize the numerous ports to enhance productivity.
Modern docking stations provide convenience for corporate or professional employees. It lets them connect their portable device or laptops with multiple peripherals like keyboard, mouse, monitors, and storage drives. It can also provide a hardwired ethernet connection for ultra-fast data transfer speeds. The need for connecting tons of devices one by one is now a thing of the past.
A multitasker can utilize the expansion capabilities of the docking station to advantage. It allows multiple-screen connection to avoid switching back and forth between multiple applications. Streamers can stream videos, manage chat, and adjust audio through the multi-monitor dock support. The docking stations streamline workflow with all the devices connected to the computer and ready to start operating.
Desk clutter can throw off any brilliant mind at work. The hassle of setting up peripherals, routing cables, and detangling wires can quickly become a struggle. A docking station provides a fixed connection point for all the devices to work through a single line. A person always on the move can set a dock in their workstation and readily form a connection between all the peripherals and the laptop.
Types of Docking Stations
1. Proprietary Docking Stations
Laptop manufacturers like Dell, HP, Lenovo, Microsoft, and Apple provide proprietary docking stations compatible with limited models. Here are some of its features:
- Connecting interface may be unique to a specific device
- Generally, it has a higher price tag
- Fully functional features with selected devices
- Easy to setup
2. Universal Docking Stations
Universal docking stations can work across operating systems, devices, and ports. Most docks offer easy connectivity and compatibility with a range of laptops. We can summarise their capabilities in the following features:
- All universal docks provide widely accepted interfaces like USB for expansion
- Works across devices and operating systems
- Users can select a dock from a variety of options for better expansion capabilities
- Have an affordable price tag
- Requires knowledge of ports and interfaces for proper setup and functionality
Usage Scenarios of the Docking Station
1. Office Scene
Offices gain the most benefit from docking stations. The growing number of mobile devices in the workplace, including laptops, smartphones, tablets, IoT devices, etc., is making professionals more mobile. A modern workstation or desk consists of pre-installed docking stations. Employers have a keyboard, mouse, speaker, webcam, and multiple monitors set up in the workstation while simultaneously connected to the docking station.
Employees can occupy any workstation and plug a single cable into their laptop. All the devices on the workstation become connected and operable through a single line. IT departments can utilize multiple screens and built-in M.2 NVMe storage expansion for monitoring and troubleshooting. The applications of a docking station in an office environment are unlimited.
2.Meeting and Presentation Scenarios
Meeting rooms have the most complex number of devices. It becomes challenging to give it a minimalist corporate look. Imagine connecting all the devices to the laptop individually to finish the setup. Employees must reach early and connect all peripherals to ensure smooth presentation delivery. It could be the project that gets their next promotion, but the malfunctioning of cables leaves them startled.
A docking station can resolve this issue if pre-installed in the meeting room. Any laptop can connect to the projector, webcam, audio system, keyboard, mouse, and all other devices via a single dock. The user can drastically reduce the complexity of the setup. Employees can bring their laptops and start presenting via a docking station within a minute.
3.Family Entertainment Scene
Family entertainment rooms are standard in a modern home. It may consist of large display, sound system, gaming consoles, and whatnot. The most popular and trending device is an HTPC. Their only drawback is that designers use mini-ITX motherboards for size constraints. They have limited ports, which brings in the requirement of docking stations.
Connecting USB dongles for wireless devices or flash drives to watch their family videos can be challenging. Now, with computer docking stations, it has become convenient with flexibility. An 8K video requires only 100Mbps for smooth play. Modern docking stations can provide up to 10Gbps data transfer speeds.
4.Popular Game Scenes
Whether it's a professional gaming tournament or a LAN party with friends, docking stations can drastically improve your experience. As gaming laptops become powerful, gamers' interest inclines towards portable PCs. They offer a high price/performance ratio, but as we mentioned earlier, gamers connect loads of devices to their computers.
Gamers require loads of space for storing and retrieving games. Typically, gamers prefer an SSD for fast loading times and zero lag while gaming. A docking station can provide 10Gbps data transfer speed using an NVMe protocol for rapid loading times. There is no capacity constraint for the NVMe connection, which allows gamers unlimited storage expansion. There is no need for a motherboard change or an M.2 PCIe card installation.
How to Choose a Docking Station?
Now, we know how docking stations are incredibly beneficial in various scenarios and have broad applications. We can move to picking the right docking station for us. There are several factors to consider:
Understanding Your Needs: Begin by identifying your requirements. Are you a digital artist requiring multiple high-resolution displays? Or a coder needing numerous USB ports?
Before choosing a docking station, check your laptop's USB-C capabilities:
Not Suitable for Docking:
- USB-C: Data Transfer ONLY.
- USB-C: Data Transfer & Power Delivery.
Suitable for Docking:
- USB-C: Data Transfer & DisplayPort.
- USB-C: Data Transfer, Power Delivery & DisplayPort.
- Thunderbolt: Best for all docking needs.
Operating System Considerations:
- Windows: Universal docking stations typically work seamlessly with Windows laptops.
- macOS: Universal docking stations might not fully support macOS. A DisplayLink docking station is ideal for macOS users, aiming to extend to two external monitors with different content. It is because macOS inherently doesn't support extending to multiple monitors using standard docking stations. DisplayLink technology bridges this gap, allowing for dual monitor extension. However, installing the corresponding driver is essential to ensure smooth performance.
Compatibility is a complex issue influenced by a variety of elements. To ensure that your computer is compatible with a device, take the following steps:
- Take a look at the USB-C symbol on your computer. It should have a port with a lightning bolt symbol or a trident with a P inside a black D symbol. It will ensure that your device port can deliver the protocols for dock operation.
- Ensure that the computer's USB C port supports the interface, such as the USB 4, Thunderbolt 3, and Thunderbolt 4. The connecting data cables should also have interface compatibility.
- If the docking station supports 100W power delivery, ensure that the port on your laptop has the USB 4, Thunderbolt 3, or 4 interface.
The docking station's power delivery and data transfer capability depends on the computer. A powerful dock like the CABLETIME 15-in-1 docking station is ideal for laptops. Its compatibility depends on the operating system, laptop USB interface, and port shape. The host computer needs a high-speed USB port to deliver the 10Gbps speed for its 5 USB ports and 10Gbps of M.2 NVMe SSDs. The docking station requires some power for its functionality. The example product uses 13W, leaving 87W for charging other devices.
2.Video and Audio Output
A docking station can have various video and audio output options, whether the classic VGA/DVI-D ports or the latest DP and HDMI connections. Docks can support 8K 60Hz and 4K 120Hz. Gamers can go for a dock that supports 120Hz, and users who want to turn their computer into an HTPC can use an 8K-enabled docking station to watch movies. By utilizing the capability of USB-C interfaces to transmit display and audio, docks offer equally diverse options for audio. Users can connect a 2.5mm audio jack or the evergreen 3.5mm jack that every audiophile needs. For recording devices like a microphone or a musical instrument, docks feature a dedicated input port.
3.Number of Ports
A laptop or a mini-computer lacks enough ports to support all the peripheral devices. Docking stations come with numerous ports. However, it's up to the user to decide which ports and quantities are required. If a user needs to connect 3 monitors to the PC, they will require an HDMI, DP, VGA, or USB-C port and interface on the docking station to make it work.
A robust product like the CABLETIME 15-in-1 docking station can support up to three video ports and more than six USB ports in USB-A and USB-C shapes for connectivity. It is the ultimate device for power users with many gadgets to keep plugged in constantly. Whether you are a gamer or an office employee in a presentation, these devices enhance productivity to its peak. If you require loads of USB device connection, look for a computer docking station with a higher quantity in the specification section.
Office employees generally require a LAN connection for intranet connectivity. A docking station can provide an RJ45 Ethernet Port expansion. If users need to transfer data, they can choose a docking station with more USB-C and USB-A ports.
4.Easy to Use
One important thing to look for is the convenience of setting up the device. There are two kinds of docks on the market: DisplayLink-driven and driverless. A powered docking station is the best solution, as it is more stable and reliable and can support more devices and features. However, consider a driverless docking station if you are looking for a simple and hassle-free solution.
DisplayLink-driven docks require a driver to be installed on your computer to work. They are typically more affordable than driverless docks but may only be compatible with some devices and features. Driverless docks do not require any drivers for operation on your computer. They are easier to set up and use but may not be as stable as DisplayLink-driven docks. Not all DisplayLink-driven docks support the ability to expand into two screens, with the contents of the two screens being different.
Modern docking stations come in a plug-and-play configuration. Installing any drivers is unnecessary, as the connected devices start working immediately. An additional power indicator and button allow users to turn off the device when it's not in use. It saves it from power consumption.
There are options to have a portable dock to carry around or a docking station that sits on a tabletop permanently. The selection of the product depends on the user. Here are some factors you should consider before making a docking station purchase.
- Size: The size of the docking station will determine how much space it takes up on your desk or in your travel bag. Choose a smaller docking station if you have limited space on your desk. If you need to take your docking station, choose a portable one.
- Aesthetics: The aesthetics of the docking station are essential if you want the docking station to blend in with the décor of your desk or workspace. If you have a modern workspace, you may want to choose a docking station with a modern design. If you have a traditional workspace, you may want to choose a docking station with a conventional design.
- Portability: Taking your docking station with you on the go is crucial. Portable docking stations are typically smaller and lighter than stationary docking stations. They also often have features that make them easier to transport, such as a built-in carrying case or a retractable cable.
If you need a docking station, select one that you can take with you on the go. You should choose a portable one. Portable docking stations are ideal for business travelers, students, and anyone needing to connect their laptops to multiple devices in different locations.

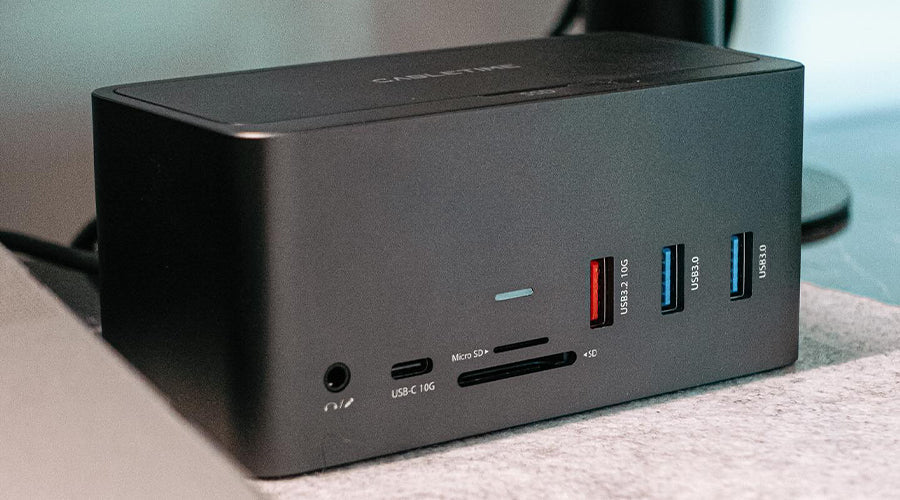

CABLETIME 15-in-1 Docking Station
- Minimalist design
- 8K Three Video Ports
- NVMe 10Gbps slot
- 100W USB PD port
If you are looking for the best compact design docking station with advanced features, then CABLETIME 15-in-1 Docking Station is your best option. It supports 8K resolution across all three video ports. The device comes in a minimalist design that focuses on functionality. All you need is a single USB PD port connection to the computer.
There are two HDMI 8K30Hz and one DP 8K30Hz (MST) connection to transmit high-image quality on a tri-monitor setup. It also features a comprehensive 10Gbps USB-A/USB-C connection, SD card slots, and an RJ45 LAN connection. The device can charge your laptop and connect all the peripherals at the same time. It also features a concealed, easy-to-access 10Gbps M.2 NVMe slot for storage expansion. It's the ultimate machine for office workstations and an ideal option for power users like gamers and video editors.
Setting Up and Using a Docking Station
Universal docking stations are effortless to set up, and once adequately connected by the user, it works every time. Here are the easy-to-follow steps to get any docking station up and running in no time:
- Before starting the setup, thoroughly examine the computer/device compatibility with the docking station.
- The port on your computer/device should have the necessary data transfer, power delivery & DisplayPort capability to enable all the docking station features.
- Connect the docking station to the laptop using a USB-C/Thunderbolt connection.
- Connect all the peripherals into the docking station, such as the keyboard, mouse, printer, monitor, storage device, microphone, webcam, projector, external drives, etc.
- If the dock requires external power, connect the AC adapter; otherwise, a power delivery port will ensure energy for the device's functionality.
- Turn on your device/computer.
- Install the necessary drivers from the dock manufacturer's website
- The computer shall recognize all the connected hardware without a problem.
How to Connect Three Monitors to a Laptop Docking Station
A high-end laptop docking station will have three display connectivity. Connecting three monitors is an easy process. Follow the guidelines to connect three monitors to a laptop docking station:
- Ensure you have a docking station with three display connections.
- The connection can be HDMI, DP, VGA, or USB-C port.
- Check the ports on your three monitors. The ports on the monitors should match with the ports on the docking station. A monitor can have multiple or a single input port.
- After examining the ports, find the relevant HDMI/DP/USB-C cable supporting 8K resolution.
- Use a passive adapter if the monitor does not have the required interface.
- Connect all the monitors with the proper interface. For example, if monitors have a DP port, connect the three DP cables between the monitors and the dock.
- Download and install the docking station drivers, if required.
- The monitors should start displaying without any problem.
As digital devices continue to be updated, dock station, a new interface connection device, reflects strong adaptability, and its scope of application and usage scenarios are becoming increasingly diverse. Buyers need to focus on their requirements as not all docking stations may reflect your scope of work. Ensure your most used interface is part of the docking station design before purchasing. Manufacturers like CABLETIME provide challenging hard drive docking stations with storage device connectivity. So, keep the option of storage expandability in mind.
Overall, consider the number of ports, their interface type, aesthetics, durability, and compatibility before making a purchase decision. These devices will reduce the table clutter, improve ergonomics, and enhance productivity and convenience for its users. So don't wait. Get yourself the triple monitor docking station.
Frequently Asked Questions
1. Does the docking station have any impact on computer performance?
Docking stations have a positive impact on your computer performance. They improve the number of port connections to the computer, expanding its capabilities. However, you must consider that the monitor display capabilities may vary concerning the number of monitor connections.
2. Do I need to install specific software or drivers for the docking station?
Generally, you don't need software or a driver to operate a docking station. However, some manufacturers have dedicated software or drivers to enhance the performance of their docking stations. Be sure to visit the manufacturer's website and review the instruction manual to find your device needs. Docking stations need a compatible operating system (OS) to become operable, so make sure your PC OS is consistent with the device.
3. Can the docking station be suitable for computers of different brands?
Docking stations are generally compatible with different brands of computers. However, checking whether your computer supports the proper protocol, interface, and port design to support the docking station is a good practice. Manufacturers like CABLETIME and UGREEN utilize USB-C PD interface ports for computer connection. They put extreme effort into testing their devices against all the popular computer brands and versions. Before purchasing, ensure the manufacturer lists your computer in the device specification, or contact the docking station customer support if you have a unique device.
4. Will using a docking station increase the device's charging speed or data transfer speed?
No, the docking station cannot increase the device's charging or data transfer speeds. The host computer sets the limits. The central computer can have a USB-C-shaped port with the latest USB 4 or a Thunderbolt 4 interface for the docking station. These interfaces can provide 100W power and 40Gbps data transmission to the docking station. Consequently, the dock will manage power and data transfer to all ports within the host computer's maximum power and data transmission capability.
5. How do you set up the connection between the docking station and the computer so that data or files will not be lost when connecting and unplugging?
To ensure the connection between the docking station and the computer is secure, start by dedicating its position on the tabletop. Secure it in place through some means. Ensure that you appropriately insert the cable into the I/O ports. The line should not undergo repetitive bending, which may damage the cord or cause the port to loosen with time. It can lead to data or file loss. In the worst-case scenario, it can cause damage to peripheral devices.
