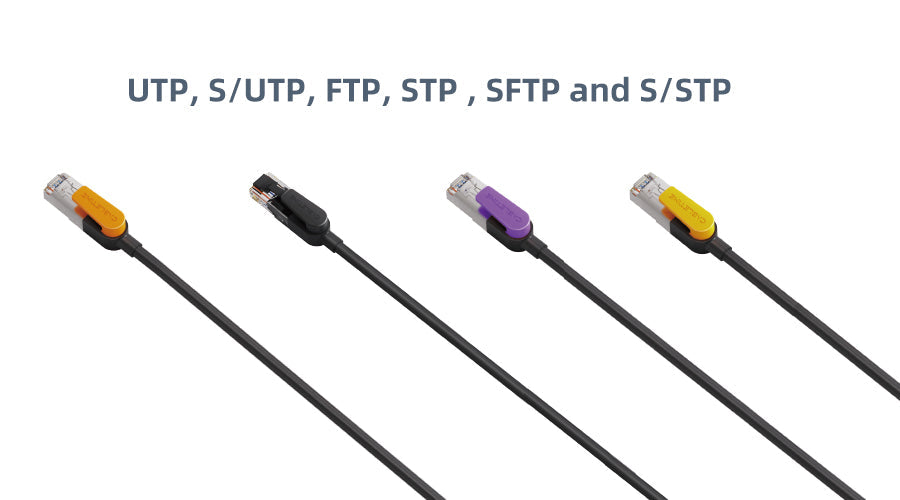

What does UTP, S/UTP, FTP, STP , SFTP and S/STP mean?

Have you ever stared blankly at a networking cable, wondering what all those letters actually mean? UTP, STP, S/FTP - it's like an alphabet soup of acronyms describing the different types of twisted pair cables used for networking and data transmission.

Well, strain your eyes no more! In this guide, we'll demystify these terms once and for all. We'll cover what each cable type means, their key differences, what environments they're best suited for, and help you make sense of choosing the right option. Strap in folks - class is in session!

UTP (Unshielded Twisted Pair)

UTP stands for Unshielded Twisted Pair, and represents the most common type of networking cable installed in offices and homes worldwide.

U	Unshielded	No additional shielding
T	Twisted	Pairs are twisted together
P	Pair	Made up of 4 pairs of wires

Known for its relatively low cost and ease of installation, UTP cables are composed of four pairs of copper wires twisted together, which helps reduce interference. The "unshielded" part means it doesn't have any additional shielding to protect against electromagnetic interference (EMI).

UTP cables are great for small home networks, but the lack of shielding does make them more vulnerable to crosstalk and EMI in more complex setups. All in all, UTP provides good performance for the price.

"UTP cables are like the Toyota Camry of network cables - they'll get the job done for most people without breaking the bank."

Common Applications of UTP Cables

UTP cables are used in a wide variety of networking applications, including:

• Ethernet Networks
  • UTP is the most popular cable for Ethernet LANs. Categories 5e and 6 UTP handle speeds up to 1Gbps.
• Telephone Networks
  • UTP is also common for telephone installs and voice comms. Though susceptibility to EMI can cause noise.
• Security Camera Systems
  • Connecting analog security cameras to DVR recording systems often utilizes UTP cabling.
• Low-Voltage Lighting
  • Some low-voltage outdoor landscape lighting systems control fixtures via UTP cables.

Essentially, anywhere cost savings outweigh the flexibility of more premium cabling, UTP is likely to be found handling networking duty. Though eventually higher network speeds or interference will necessitate upgrading to better shielded cabling.

Key Differences Between UTP and Shielded Cables

Since UTP cables lack any shielding, there are a few key effects that differentiate them from shielded options:

• Susceptibility to EMI/RFI- UTP cables are prone to electromagnetic and radio frequency interference from nearby power cables, motors, generators, electronics, and other equipment. This can degrade signal performance.
• Higher Crosstalk- Without separation from adjacent lines, UTP wire pairs induce signal coupling and crosstalk more readily, corrupting data.
• Limited Distance- Higher frequency signals attenuate more rapidly down longer UTP cable runs compared to shielded options that better contain signals.
• No Outdoor/Wet Locations- The lack of shielding leaves UTP cables vulnerable to moisture, water damage, and signal leakage outdoors.

So in summary, UTP is more affected by environmental factors, best kept to shorter indoor cable runs in networks that prioritize saving cost over maximizing bandwidth and distance potential.

S/UTP (Shielded/Unshielded Twisted Pair)

The slightly fancier sibling of UTP cables, S/UTP stands for Shielded/Unshielded Twisted Pair. See the pattern with these TLA's (three letter acronyms)?

As the name suggests, S/UTP cables have an overall braided mesh outer shield to protect against EMI from external sources. But the internal wire pairs themselves remain unshielded from each other.

Letter	Meaning	Description
S	Shielded	Overall braided mesh shielding
/	And	Combines properties of shielding
U	Unshielded	Internal pairs still unshielded
T	Twisted	Pairs twisted together
P	Pair	4 pairs of copper wires

The outer shielding gives S/UTP cables reasonable noise protection for less cost than more heavily shielded options. This middle-ground approach works well for networking environments with moderate EMI sources.

So if you want better resilience than basic UTP cables, without the premium price tag of super shielded cables coming up next, S/UTP is likely your best bet!



Common Applications of S/UTP Cables

Thanks to balanced cost and noise resistance, S/UTP cables work well in:

• Office Networking
  • Protecting desktop connections from cube farm EMI and providing Gigabit Ethernet links.
• Wireless Access Points
  • Preventing radio interference while connecting WAPs with Ethernet backhaul.
• Education Campuses
  • Classrooms, auditoriums, and other public areas prone to electrical noise sources.
• Retail/Hospitality
  • Point of sale systems and property management networks benefit from slight shielding.

Essentially more critical and high-bandwidth applications than basic UTP, but not quite demanding the premium performance of industrial-grade shielded cabling. S/UTP hits a flexibility sweet spot across office infrastructures.

Key Differences from UTP

Compared to unshielded UTP, S/UTP cables provide several key advantages:

• Added protection from external EMI/RFI sources.
• Longer cable runs before signal degrades.
• Handle higher network speeds and throughput potential.
• Better reliability for point-of-sale and data applications.

The tradeoff is S/UTP remains prone to crosstalk between unshielded internal pairs, limiting high frequency performance compared to heavier shielded options. But for many office or retail networks, the boost is substantial.

FTP (Foiled Twisted Pair)

This next abbreviation throws a bit of a curveball. FTP stands for Foiled (or Foil) Twisted Pair cable. See, no S this time!

F	Foiled	Overall foil shield
T	Twisted	Internal pairs are twisted
P	Pair	Made up of 4 wire pairs

FTP cables use a foil shielding that wraps around the entire bundle of twisted wire pairs within. This helps block interference from external EMI sources to provide enhanced signal performance.

The foil shielding makes FTP cables suitable for areas prone to greater electromagnetic interference, like industrial environments or places near heavy power sources. FTP strikes a balance between cost, ease of termination, and noise resistance. Just note it doesn't protect from crosstalk between internal pairs.

"Going camping in the woods? An FTP cable will keep the cranky bears out of your network transmission signals!"

Common Applications of FTP Cables

Thanks to robust foil shielding in a flexible cable build, FTP works well for:

• Factories & Warehouses
  • Protecting network links from heavy machinery, motors, and high power.
• Smart Energy & Utilities
  • Sensor networks near electrical distribution equipment prone to interference.
• Transportation Depots
  • Bus garages, train stations, etc with vehicle electronics generate EMI.
• Sports Venues
  • Jumbo video boards and stadium lights produce major power transients.

Essentially any environment with moderate-to-major electromagnetic noise sources nearby, FTP carries signals through the turmoil at better pricing than premium shielded options.

Key Differences from UTP

Unlike UTP cables, FTP provides:

• Total coverage foil shield to block external interference.
• Prevent signal ingress/egress in noisy Radio Frequency environments.
• Carry Ethernet, PoE, analog signals despite disruptive EMI fields.
• Retain high bandwidth & speed at longer distances.

So if you need robust immunity in an industrial-grade electrical jungle, FTP has you covered!

Next up, the cadillac of twisted pair shielding...

STP (Shielded Twisted Pair)

STP stands for Shielded Twisted Pair, representing a big step up in noise protection.

S	Shielded	Shielding around each internal pair
T	Twisted	Pairs are twisted together
P	Pair	Composed of 4 pairs

The key difference versus previous cables is STP wraps each individual pair of wires in metallic shielding or foil. This greatly minimizes electrical leakage and crosstalk between pairs running alongside each other.

On top of shielding each internal pair, some STP cables even add an outer foil shield across the full bundle, like FTP. This combo shielding makes STP the superhero of noise cancellation!

For mission critical network hardware or extremely noisy electrical environments, STP cables are often the only way to ensure reliable data transmission free of interference. The cost is higher, but so is the performance.

"Getting constant static on your VoIP calls? Consider an STP cable upgrade to silence that crosstalk catastrophe."

Common Applications of STP Cables

With the highest degree of internal pair shielding, STP cables excel in environments like:

• Manufacturing Facilities
  • Protecting data integrity around heavy-duty equipment and high power.
• Healthcare Networks
  • Guarding medical devices from MRI/X-ray machine interference.
• Data Centers
  • Preventing crosstalk on ultra-high speed data links between servers.
• Financial Trading Floors
  • No glitches allowed in trading network signals means relying on STP.
• Scientific Research Labs
  • Shielding radiation interference from sensitive experimental gear.

Any mission critical environment that combines dense, surrounded cabling with extremely noisy adjacent electronics will benefit from specifying STP cables for reliability and precision.

Key Differences from UTP and FTP

Unlike UTP and FTP, STP truly sets itself apart by:

• Shielding each individual twisted pair from adjacent lines
• Preventing alien crosstalk that degrades high speed signal integrity
• Maintaining cable runs of 100 meters plus for 10G Ethernet
• Protecting against ESD events from nearby equipment
• Isolating precision multicast networking traffic

So when every nanosecond of signal accuracy matters, STP cables deliver pristine transmission stability.

S/FTP (Shielded Foiled Twisted Pair) and S/STP

The most shielded twisted pair option uses the mouthful name Shielded/Foiled Twisted Pair, or S/FTP for short. Also referred to as S/STP.

S	Shielded	Foil shield around each internal pair
/	And	Combo of multiple shielding layers
F	Foiled	Overall foil shield around all pairs
T	Twisted	Internal copper wires twisted together
P	Pair	Made up of 4 pairs

Like STP cables, S/FTP wraps every individual wire pair in foil/metallic shielding to waterproof signals from adjacent pair crosstalk.

In addition, S/FTP cables add further full-coverage foil or braided shielding around the complete cable bundle. This double dose of protection means no stone is left unturned shielding out even the most tenacious interference.

This extreme shielding offers maximum protection for high frequency or extremely noisy environments. While overkill for ordinary office or home use, mission critical systems like data centers or sensitive research labs require the ultimate signal isolation S/FTP provides.

Of course with great power comes great dollar signs - make sure you actually need this level of noise cancelling prowess before shelling out!

Common Applications of S/FTP Cables

You'll see S/FTP cables primarily in dense, high-bandwidth environments like:

• Large Enterprise Data Centers
  • Google, AWS, etc rely on shielded 40/100G links between hyper-scale servers.
• HPC Supercomputing Clusters
  • Massively parallel processors passing huge datasets make S/FTP essential.
• Government/Military Networks
  • Shielding ensure confidential data isn't compromised during transmission.
• Telecommunication Facilities
  • Extreme broadband networks such as 5G cell tower backhaul links.
• Top-Tier Research Institutions
  • Guarding leading physics/chemistry experimental apparatus from interference.

So while S/FTP cables carry a premium, their overengineered shielding enables breakthroughs in computational research, telemedicine, weather prediction, and other areas advancing society exponentially.

Key Differences from STP

Beyond even STP, S/FTP ratchets protection to the maximum by:

• Adding overall foil + braided shielding
• Protecting key 40GbE/100GbE links in data centers
• Preventing alien crosstalk in ultra-high density cable bundles
• Maintaining stable impedance for link reliability
• Meeting stringent emissions requirements

When network infrastructure sprawls across acres supporting leading research or online services, S/FTP ensures flawless high-throughput connectivity.

Comparison Overview

Cable Type	Shielding	Best Use Cases
UTP	No shielding	Homes, small offices
S/UTP	Overall foil shield	Offices with some external EMI
FTP	Full foil shield	Industrial areas, near heavy power
STP	Shielding per pair + overall	Noisy electrical environments
S/FTP	Double shielding	Extreme EMI protection

To summarize, UTP provides adequate shielding for most simple networking needs, while S/UTP offers a compromise between cost and resilience for moderate interference areas. From there, FTP and especially STP ratchet up the shielding for precision transmissions in more noisy surroundings. And S/FTP pulls out all the stops when you absolutely cannot risk any signal corruption.

The wide range of options available ensures you can find the right TLA cable to fit the needs of any networking environment!

Conclusion

That wraps up our deep dive into the admiring alphabet of UTP and friends in the network cabling world!

As you can see, those clusters of obscure letters actually represent clever engineering solutions to combat interference as our reliance on data skyrockets. Thanks to these ever-evolving cable technologies, we can push connection speeds faster and faster while demanding greater signal fidelity in ever-tougher environments. I don't know about you, but that sure untwists my pairs!

Hopefully this guide has helped decode cable terminology that previously seemed encoded. The next time you see a UTP or STP reference, instead of scratching your head, you'll nod along knowingly! So stay shielded out there folks, and happy networking!

Refer https://cabletimetech.com for all your Cat 6, Cat 7, Cat8, FTP patch cables, USB C cables, docking stations, adapters and all other computer networking accessory requirements. Cabletime specializes in supplying tested-certified Ethernet cables suitable for commercial networking applications and mission critical links.

FAQs

Still hungry for more cable details? Here are answers to some frequently asked questions:

What are the practical differences between UTP and STP cables?

For most home and basic office setups, UTP handles networking needs at lower cost. But in challenging electrical environments with lots of motors or other equipment, STP protects critical data transmissions. Think manufacturing floors, hospitals with MRI machines, etc.

How does shielding affect the performance of network cables?

Adding metallic foil or braided mesh shielding blocks external electromagnetic interference from disrupting data signals in the copper wire pairs. This allows reliable high-speed transmissions despite noise.

Are S/UTP cables suitable for outdoor use?

Sometimes! Check the specific cable specifications, as some S/UTP is rated for direct burial while others are indoor/outdoor use only. The foil shielding protects against moisture and water intrusion.

What factors should be considered when choosing between FTP and S/FTP cables?

Look at three things - cost, level of EMI in the environment, and data transmission speeds needed. S/FTP costs more but shields extreme interference for 10Gbs+ networks. FTP hits a middle ground.

Can S/FTP cables be used in high-speed data applications?

Absolutely! The extreme double shielding of S/FTP makes it ideal for ultra-fast networks, protecting carrier wave signal integrity. Just be sure to match category spec with speed.
